Three Phase Hybrid Inverter-15Kw
£1,369.001
HESS+B5W51
Original price was: £622.00.£590.00Current price is: £590.00.1
HESS+B5U51
Original price was: £1,167.00.£976.00Current price is: £976.00.1
Specifications and Parameters:

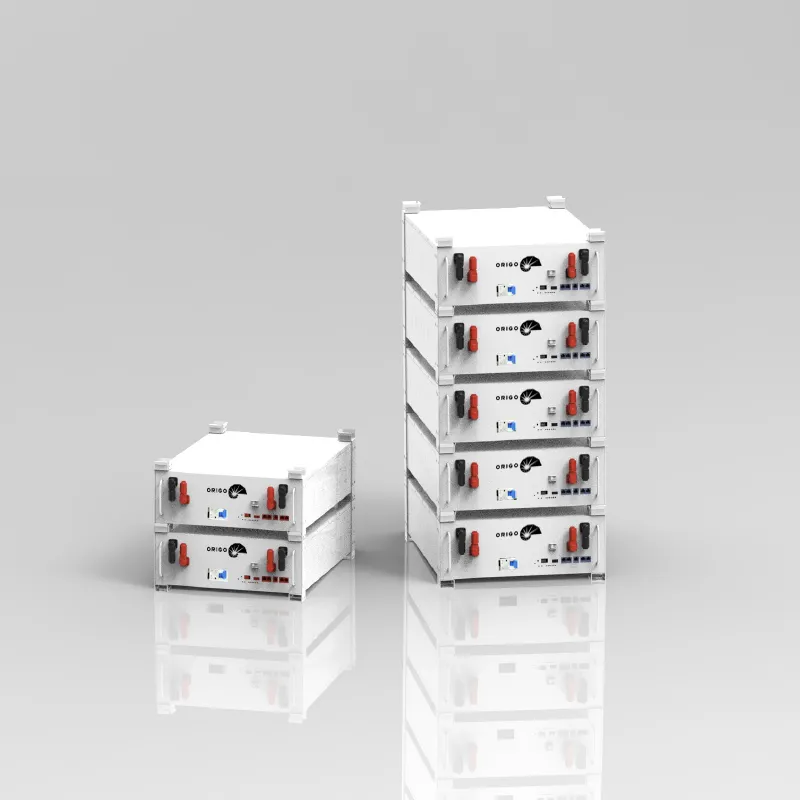

| MODEL ID | HESS+B5U51 |
| Unit Pack Data | |
| Total Energy | 10 kWh |
| Nominal Power Rating | 10 kW |
| Nominal DC Voltage | 51.2 v |
| Operating Voltage Range | 41.6-57.6 v |
| Cell Chemistry | LiFePO4 |
| Useable Energy | 95% |
| Battery Modules | 2 |
| Dimensions W/H/D | 482×133×630 mm |
| Max.Weight | 45 Kg |
| Scalable | No |
| Cooling | Natural and passive |
| Altitude | Up to 2,500 meters(8,200 feet) |
| Operating Temperature Range | -25℃ to+50℃(-13F to 122°F) |
| Inverter Integration | N/A |
| Inverter Compatibility | Compatible with popular inverter
brandssuch as Deye,Goodwe, Solis, SMA, Pylon tech andGrowatt etc. |
| Interface | CAN-Bus, RS485 |
| Independent Breaker | Integrated |
| Mounting | Floor standing |
| Design Life | 10-year |
| Warranty | 6000 cycles |
| Enclosure Rating | P54 |
Description
Description
Reliable
• Proven high reliable LFP cells
• limited warranty
• Independent Battery base modules
• BMS protection
Smart
• Grid-forming capability for backup operation
• Remote software and firmware upgrade
• Mobile app-based monitoring and control
Simple
• Fully integrated DC battery system
• Quick and easy plug-and-play installation
• Interconnects with standard household inverters
Safe
• Multi-level safety tested
• Lithium iron phosphate (LFP) chemistry for maximum safety and longevity
Additional information
| Weight | 45 kg |
|---|---|
| Dimensions | 13.3 × 48.2 × 63 cm |
About brand
A range of batteries, all-in-ones and larger solutions
