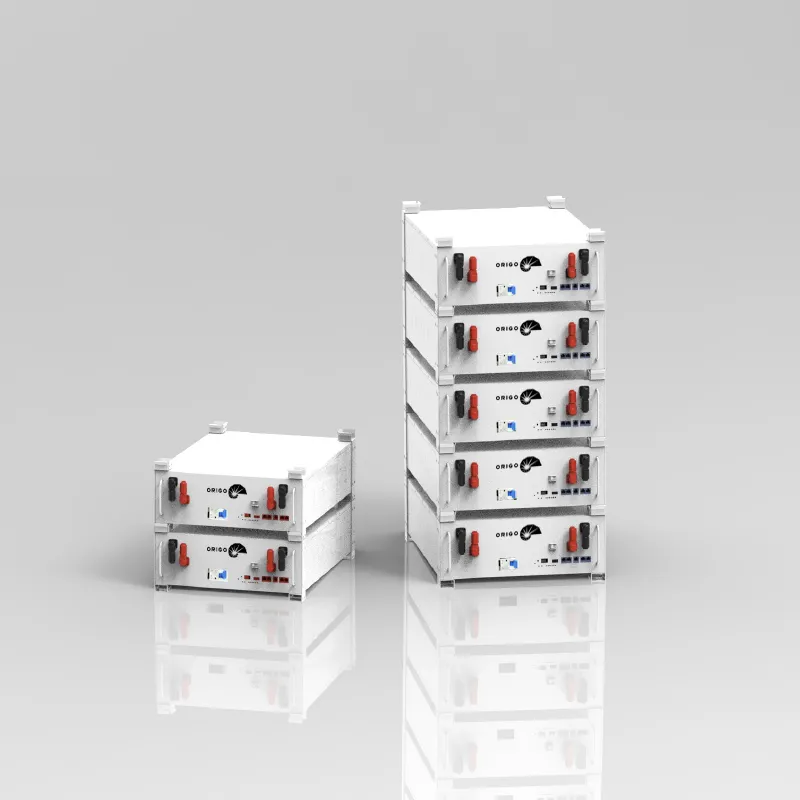

HESS+B5W51

Specifications and Parameters:

MODEL ID	HESS+B5U51
Unit Pack Data
Total Energy	5.0 kWh
Nominal Power Rating	5.0 kW
Nominal DC Voltage	51.2 v
Operating Voltage Range	41.6-57.6 v
Cell Chemistry	LiFePO4
Useable Energy	95%
Battery Modules	2
Dimensions W/H/D	482×133×630 mm
Max.Weight	45 Kg
Scalable	No
Cooling	Natural and passive
Altitude	Up to 2,500 meters(8,200 feet)
Operating Temperature Range	-25℃ to+50℃(-13F to 122°F)
Inverter Integration	N/A
Inverter Compatibility	Compatible with popular inverter brandssuch as Deye,Goodwe, Solis, SMA, Pylon tech andGrowatt etc.
Interface	CAN-Bus, RS485
Independent Breaker	Integrated
Mounting	Floor standing
Design Life	10-year
Warranty	6000 cycles
Enclosure Rating	P54

Reliable

• Proven high reliable range of Battery Storage systems using LFP cells

• limited warranty

• Independent Battery base modules

• BMS protection

Smart

• Grid-forming capability for backup operation

• Remote software and firmware upgrade

• Mobile app-based monitoring and control

Simple

• Fully integrated DC battery system

• Quick and easy plug-and-play installation

• Interconnects with standard household inverters

Safe

• Multi-level safety tested

• Lithium iron phosphate (LFP) chemistry for maximum safety and longevity

Weight

45 kg

Dimensions

13.3 × 48.2 × 63 cm

HESS+B5W51
