Description
BATTERY INFO
Capacity:
3,840Wh(Expandable to 11,520Wh)
Type:
LiFePO4 (Lithium Iron Phosphate)
Life Cycles:
6500+ Cycles to 50% Original Capacity
Management System:
MPPT Charge Controller, BMS, etc.

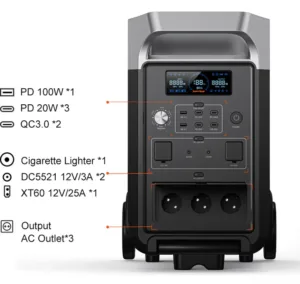

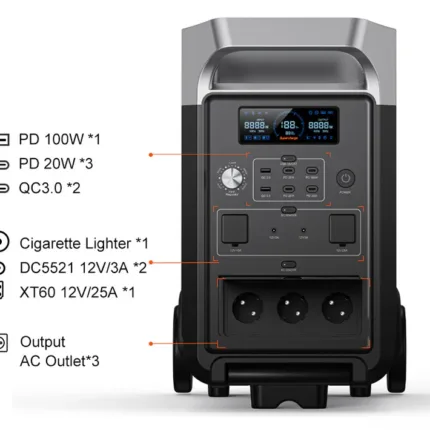

OUTPUT
Inverter Type:
Pure Sine Wave
AC Outlets:
EU Model(3 x AC)
US Model(5 x AC)
JP Model(5 x AC)
US Model(5 x AC)
JP Model(5 x AC)
USB-C Ports:
3 x PD20W, 1 x PD100W
USB-A Ports:
2 x QC3.0 18W
Cigarette Lighter:
1 x 12V/10A
XT-60 (RV Outlet):
1 x 12V/25A
DC5521 (5.5mm Outlet):
2 x 12V/3A
INPUT
AC Input:
2200W Max.
Extended Battery Input:
Extra Battery Port*2
Solar Input (XT90 to MC4):
2000W Max. (12-160V)
AC + Solar Input:
4200W Max.
Generator Input:
1100 Max.
Car Charger Input:
12/24V, 10A MAX
SMART CONTROL
Connectivity:
Bluetooth, Wifi
App Control:
Yes
GENERAL
Scalability:
Expandable W/Up to 2 x FB3840
Simultaneous Recharge & Discharge:
Yes
Dimensions(LxWxH):
60.90*32.10*47.55cm
Weight:
92.59 lbs(42KG)
Operating Temperature:
0℃~40℃/30℉~104℉
Storage Temperature:
0℃~40℃/30℉~104℉
Certification:
FCC,CE,PSE,RoHS,UN38.3,MSDS
Warranty:
24 Months
